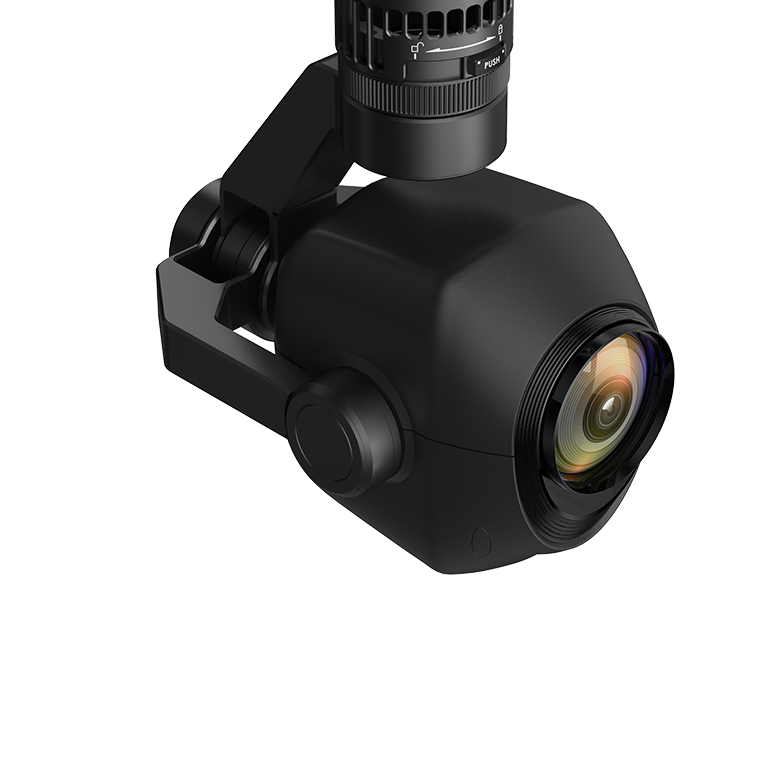

DL3 Infrared Camera
The high-sensitivity infrared camera breaks through the limitations of geographical location and light, and can capture accurate and clear thermal images anytime, anywhere,and reduce the risk of information latency.
Specifications:
- Image resolution: uncooled focal plane, 640*480
- Working band: 7~14 um
- Spatial resolution: 0.34 mrad
- Infrared lens focal length: 50mm
- Optical focusing system: motorized/auto focus
- Digital zoom: 2x, 4x, 8x, 16x
- Focusing method: automatic/manual
- Temperature measurement accuracy: ±2° or ±2%
- Lens field of view: 12°*9°
- Operating temperature range: -20°C ~ 50°C
- Operating relative humidity: 10% ~ 95%, non-condensing
- PTZ control range: Pitch: -90° ~ 0° Yaw: 0°~ 360°
- Control angle accuracy: ±0.02°
