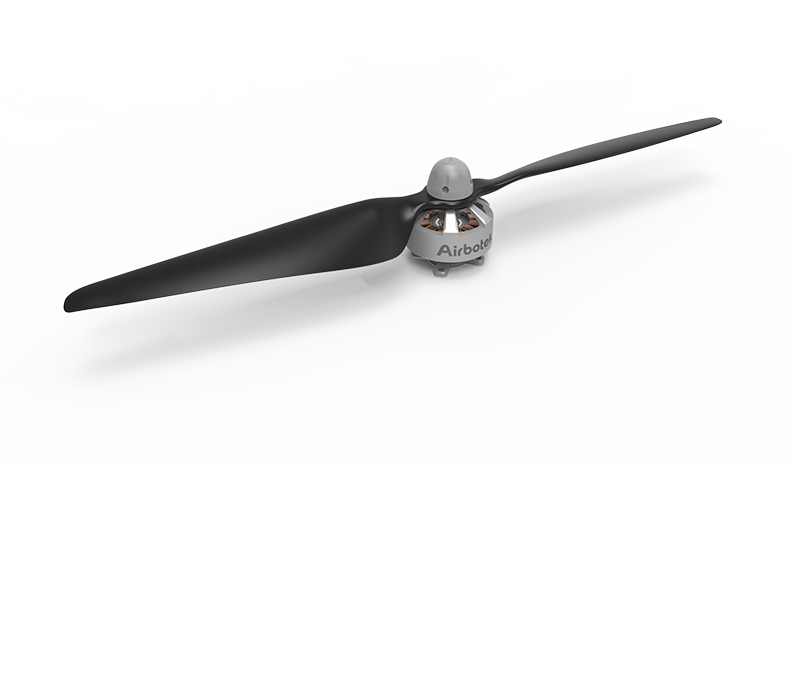

A2808 Propulsion System
A propulsion system made just for lightweight consumer drone. A combination of motor BL2808 and propeller R1185 that assures monoaxial rated thrust of 500g, max thrust of 1.25kg and provides efficient power for consumer drones.
Specifications:
- Max Thrust: 1.25kg/Axis (15.2V, horizon)
- Recommended Takeoff load: ≤500g/axis
- Recommended Battery: 4S Li-Po
- Operation Ambient Temperature: -10 to 40℃
- Motor KV: 685rpm/V
- Motor Weight: 70g (wires included)
- Max Current: 14A
- Propeller Diameter and Wheelbase: 300 x 127mm
- Single Propeller weight: 14g
